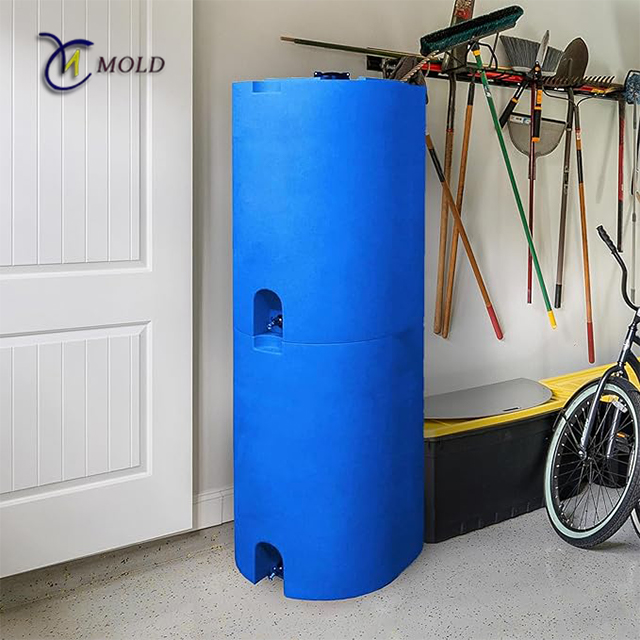

The demand for sustainable water storage has transformed the Rotomold Rain Barrel from a basic utility product into an engineered system component used in residential irrigation, agricultural water management, and commercial rainwater harvesting systems.

The performance of these barrels depends heavily on the rotational molding process, where mold design, material distribution, and thermal control directly determine durability, leak resistance, and structural integrity.

XINGHUI MOLD, a specialized manufacturer of rotational molds and custom plastic forming systems, plays a critical role in defining the quality standards of industrial rainwater storage products.

---

1. Rotational Molding Workflow Overview

The production of a Rotomold Rain Barrel follows a controlled four-stage process:

Stage 1: Material Loading

• Powdered polyethylene loaded into mold cavity

• Additives mixed for UV and impact resistance

Stage 2: Heating and Rotation

• Mold rotates biaxially

• Material melts and coats internal surfaces

• Temperature range: 260°C–400°C

Stage 3: Cooling Phase

• Controlled air cooling followed by water spray

• Gradual temperature reduction prevents warping

Stage 4: Demolding

• Finished hollow structure removed

• Post-processing includes trimming and fitting installation

---

2. Thermal Distribution Control: The Key to Structural Integrity

Uneven heating leads to defects such as:

• Thin wall zones

• Bubble formation

• Structural weak points

Advanced mold systems ensure:

• Uniform heat absorption across cavity

• Balanced rotation speed (primary + secondary axis)

• Controlled thermal gradients

This ensures consistent polymer fusion and wall formation.

---

3. Mechanical Performance Requirements for Rain Barrels

Industrial-grade rain barrels must withstand:

Hydrostatic Load

• Full water capacity pressure distribution

• Long-term static load without deformation

Environmental Stress

• Freeze-thaw cycles

• UV exposure degradation

• Wind and external impact

Handling Stress

• Transportation vibration

• Installation pressure

Rotomolded structures provide superior resilience due to their seamless monolithic structure.

---

4. Mold Engineering: Precision Determines Output Quality

Mold design is the most critical factor in production consistency.

Key parameters include:

• Wall thickness zoning design

• Venting system for air displacement

• Cooling channel configuration

• Surface finish engineering

XINGHUI MOLD designs molds to optimize:

• Material flow uniformity

• Cycle time reduction

• Structural reinforcement distribution

Poor mold engineering leads to inconsistent product thickness and reduced lifespan.

---

5. Material Behavior During Rotation Process

Polyethylene powder behaves dynamically during heating:

• Initial adhesion phase (powder sticks to mold surface)

• Melting phase (particle fusion begins)

• Flow distribution phase (uniform coating formation)

Controlling this behavior ensures:

• No void formation

• No delamination

• Strong molecular bonding structure

---

6. Cooling Strategy and Dimensional Stability

Cooling is as important as heating.

Improper cooling leads to:

• Warping deformation

• Shrinkage imbalance

• Internal stress accumulation

Optimized cooling includes:

• Gradual air cooling stage

• Controlled water spray phase

• Uniform temperature reduction across mold

This stabilizes final product geometry.

---

7. Production Scalability and Industrial Efficiency

Rotomolding supports:

• Low tooling cost compared to injection molding

• High design flexibility

• Multi-product mold adaptation

Typical industrial output:

• 20–100 units per mold cycle per day depending on configuration

Efficiency improvements depend on:

• Multi-arm rotational machines

• Cycle time reduction strategies

• Optimized powder distribution systems

---

8. Application Scenarios of Rotomold Rain Barrels

Rotomold Rain Barrels are widely used in:

• Residential rainwater harvesting systems

• Agricultural irrigation storage

• Greenhouse water recycling systems

• Municipal stormwater management projects

Their durability and cost efficiency make them suitable for both developed and developing infrastructure systems.

---

Conclusion: Engineering Excellence Defines Rainwater Storage Systems

The performance of a Rotomold Rain Barrel is determined by a combination of:

• Mold engineering precision

• Thermal process control

• Material behavior optimization

• Cooling stability

XINGHUI MOLD provides the technological foundation that ensures consistent quality and long-term structural reliability in rotationally molded water storage systems.

In modern environmental infrastructure, rain barrels are no longer simple containers—they are engineered components of sustainable water management systems.
